12G SDI FMC Daughter Card

Our VIDIO 12G SDI FMC Daughter Card equips developers with the latest in broadcast video technology. VIDIO offers 12G SDI and 10G IP interfaces supporting resolutions up to 4Kp60 on select AMD/Xilinx Ultrascale, Ultrascale+, Kintex, Virtex, and Zynq FPGA development boards.

VIDIO is designed to support AMD/Xilinx KCU116, KCU105, KC705, ZCU102/106, and most other AMD/Xilinx development boards supporting the FMC HPC Standard.

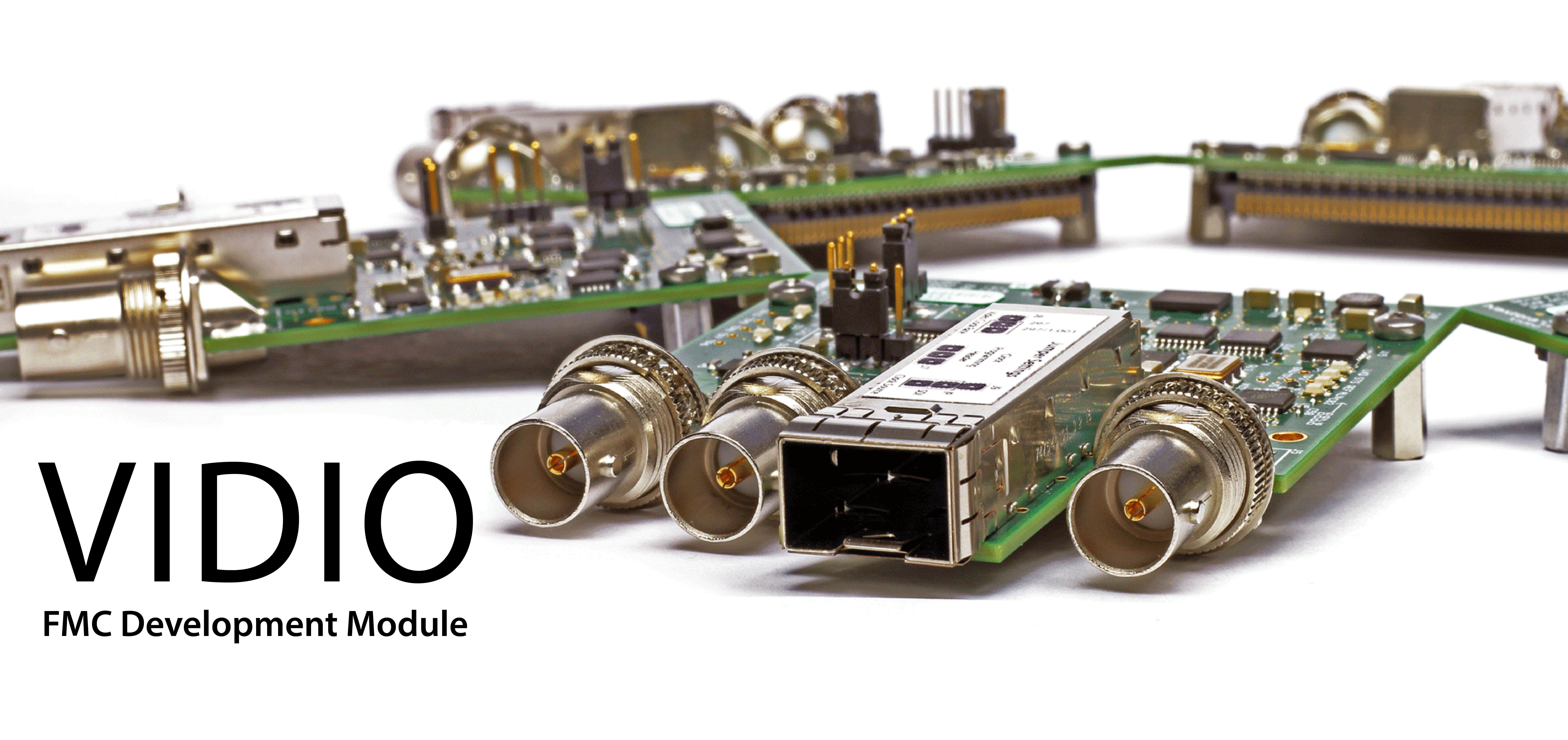

Our 12G SDI FMC Card is a single FMC board utilizing the latest technology from Texas Instruments® and boasting full size edge launch BNC’s and an SFP+ for SDI or IP development. Schematics, Gerbers, bill of materials, along with example projects are available to help jump-start your hardware design.

Full Speed Ahead

The VIDIO SDI Interface supports 270M, 1.5G, 3G, 6G, and 12G SDI, while the Ethernet/Video SFP+ interface supports 1G, 2.5G, and 10G. Applications include IP Gateways, Format Converters, and Signal Extenders.

12G SDI Jitter Performance at 100m

Unmatched 12G SDI Jitter Performance

The VIDIO SDI FMC card was rigorously tested with the latest BERT testers and SDI signal analyzers and offers the best jitter performance on the market. Our 12G SDI FMC board is able to drive 100 meters of 8281 coax and still meet SMPTE jitter specs. VIDIO provides an affordable and effective platform on which to develop new 4K and Video over IP products. To place an order, please contact [email protected].

Part Number

VIDIO-12G-X, Xilinx

For more info on the 12G SDI devices, see: www.ti.com/sdi

VIDIO Datasheet

Contact Sales

Contact Support
